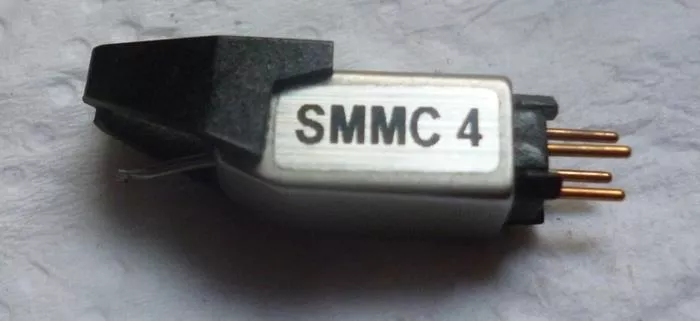

Soundsmith SMMC4 Pick-up til pladespiller
Lagerstatus:
IKKE på lager (normalt 2 - 5 dages levering)
Varenr: smmc4
Flere produkter fra Soundsmith
Beskrivelse
Energimærke
Specifikationer
Cartridge Type
Stylus Type
Elliptical
Output
High
Output Voltage
2.2mV
Available As Dual Coil Mono
Yes
Additional Specifications
| Model: | SMMC4 |
| Type: | • Fixed Coil / Moving Iron |
| Mount: | • B&O Compatible (Group 1) |
| Stylus: | • Elliptical Titanium Bonded, 0.20 mm round |
| Radius of Curvature: | • 6 x 17 µm |
| Cantilever: | • Aluminum Alloy Tube |
| Recommended Tracking Force: | • 12 mN / 1.2 g |
| Effective Tip Mass: | • 0.50 mg |
| Compliance: | • 28 µm/mN |
| Frequence Response: | • 20 - 20,000 Hz ± 2.5 dB |
| Channel Separation @ 1000 Hz: | • > 22 dB |
| Channel Separation @ 50 - 15,000 Hz: | • > 20 dB |
| Channel Difference: | • < 2.0 dB |
| Output Voltage @ 5cm/sec: | • > 2.12 mV |
| Cartridge Weight: | • 1.60 g |
| Recommended Load Resistance: | • ≥ 47kΩ |
| Recommended Load Capacitance: | • 100 - 300 pF |
Energimærke
Der er ingen energimærke til dette produkt
